Medical PCL-HA

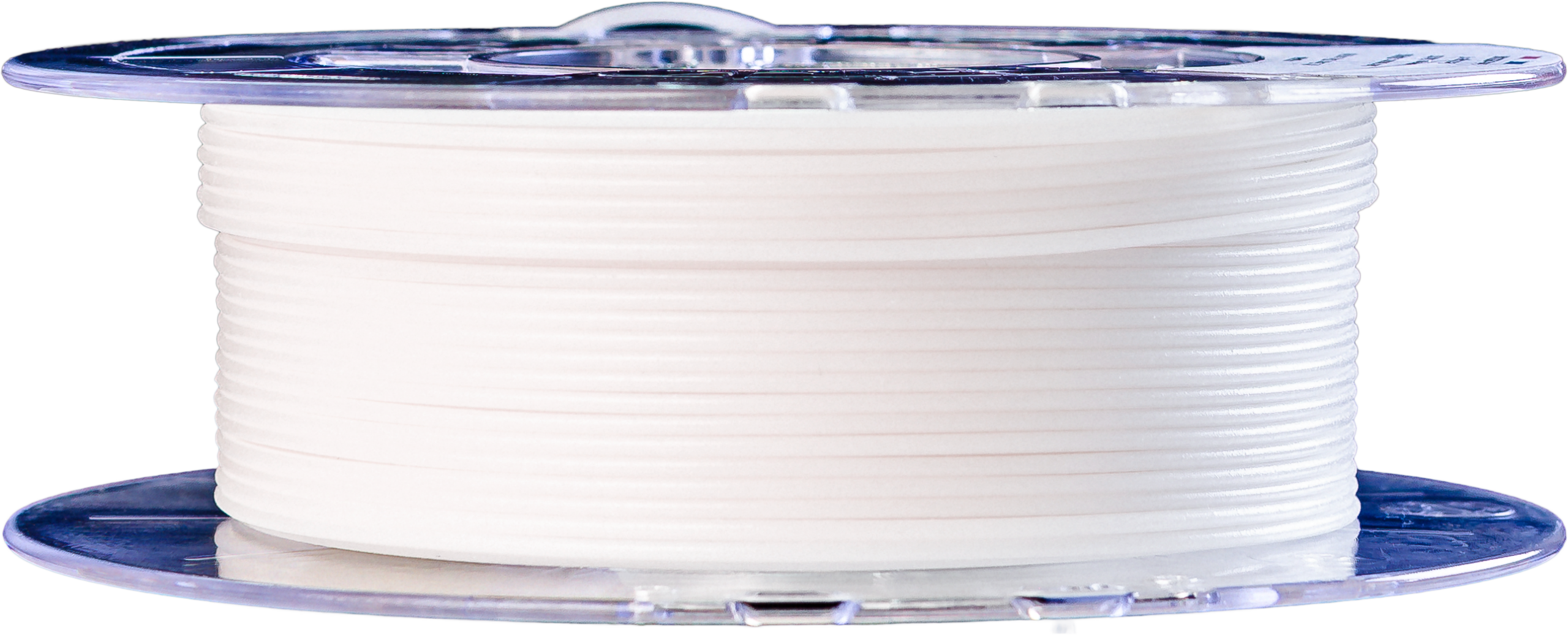

The CAPROLACTISSE HA [PCL 30% HA] medical-grade filament is a white, rigid, semi-crystalline thermoplastic composed of 70% Polycaprolactone (PCL) and 30% Hydroxyapatite (HA) (by weight fraction). Implantable and bioresorbable, it degrades slowly after implantation, with resorption occurring over more than 24 months. The combination of PCL, known for its mechanical stability and progressive resorption, and hydroxyapatite, the natural mineral component of bone, enhances osteoconductivity and osseointegration. This filament is particularly suited for bone reconstruction applications and tissue engineering.

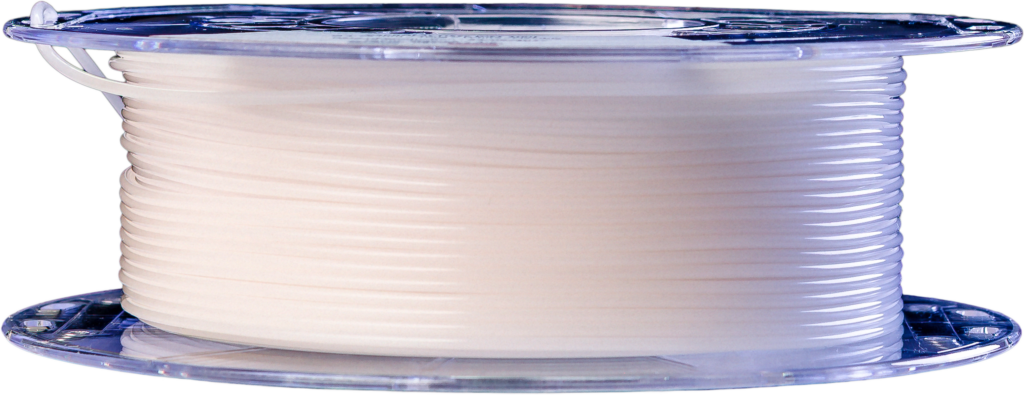

Focus on Medical PCL-HA

Its technical specifications

  • Material: PCL (70%) + HA (30%)
  • Color: White
  • Appearance: Rigid
  • Diameter: 1.75 mm
  • Spool weight: 100 g & 200 g
  • Resorption time: > 24 months
  • Origin: Made in France
  • Type: Implantable and bioresorbable

Its printing Properties

To ensure reliable prints suitable for medical applications, the following parameters are recommended:

  • Extrusion temperature: 200 °C
  • Bed temperature: 40 – 45 °C
  • Printing speed: 20 – 60 mm/s

PCL-HA requires strict storage conditions. Before opening, allow the spool to return to room temperature for 4 to 6 hours to prevent condensation. If necessary, it can be placed in a ventilated oven (maximum 40 °C).

Its biological and functional properties

  • Long-term bioresorbable
  • Biocompatible
  • Osteoconductive
  • Promotes osseointegration
  • Slow and progressive resorption
  • Rigidity suitable for temporary support devices

Its controlled degradation ensures initial mechanical support while accompanying natural bone regeneration.

Its areas of application

Medical-grade PCL-HA filament is particularly suitable for the following healthcare applications:

  • Resorbable osteosynthesis plates
  • Screws and temporary implantable devices
  • Customized structures for bone reconstruction
  • Tissue engineering applications

Advantages and precautions

Advantages

  • Implantable
  • Slow resorption (> 24 months)
  • PCL + HA combination promoting bone integration
  • Compatible with 3D printing (1.75 mm)
  • Custom extrusion available (HA ratio adjustable upon request)

Precautions

  • Recommended storage between –4 °C and –20 °C
  • Store under vacuum with desiccant pouch
  • Avoid prolonged exposure to moisture
  • Repackage if not used for an extended period
Purchase our PCL-HA

Need support?

Whether you are developing bioresorbable implantable devices or innovative solutions in bone reconstruction, our team supports you from material selection to technical validation.

Contact us to discuss your needs and discover how our CAPROLACTISSE HA filament can support your innovations in biomedical additive manufacturing.
